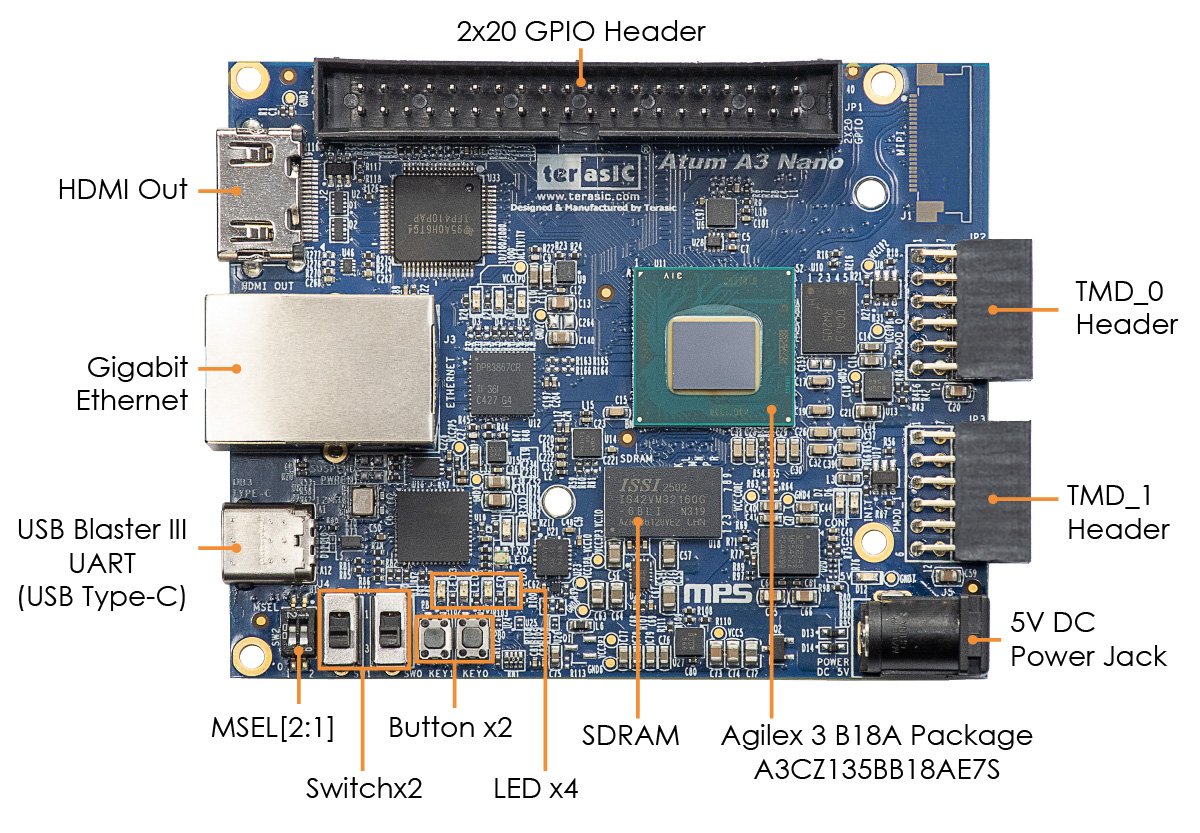

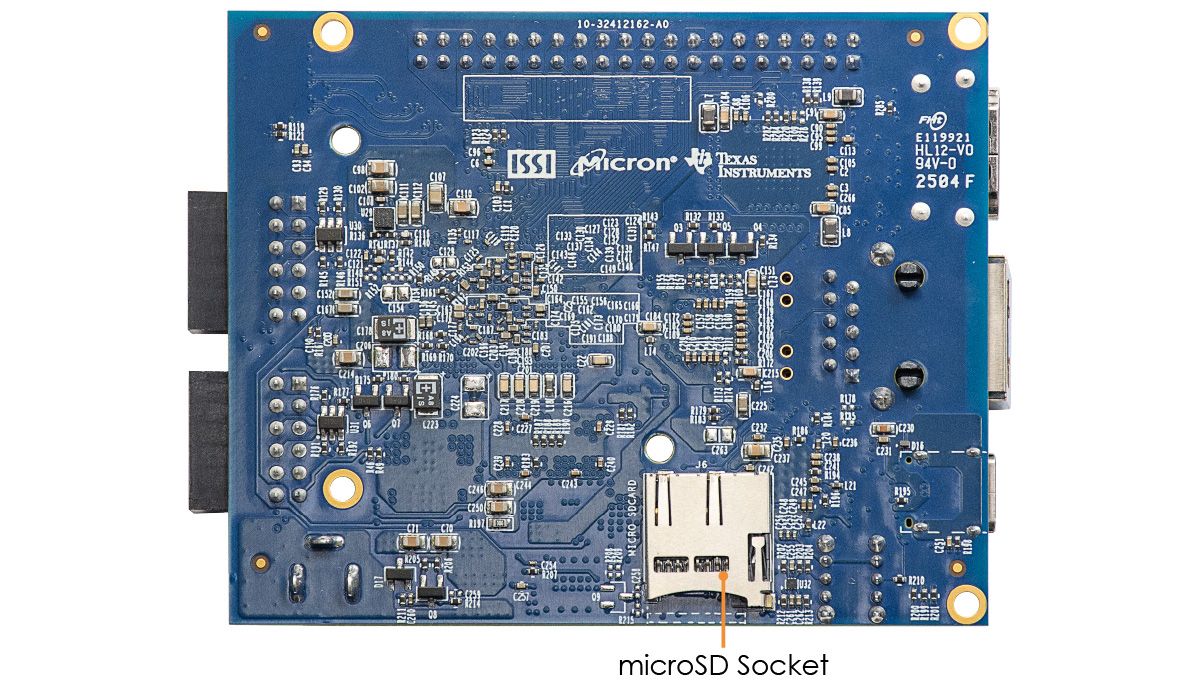

Terasic’s Atum A3 Nano delivers powerful performance in a compact, affordable platform. Powered by Altera’s largest Agilex 3 FPGA with 135K LEs, the board features 64 MB of SDRAM, an onboard USB-Blaster III with USB Type-C connection, HDMI output, Gigabit Ethernet, and microSD storage, all within 85 mm x 70 mm form factor.
Designed for versatility, the Atum A3 Nano includes multiple user I/Os (LEDs, buttons, switches), a 2x20 GPIO connector, and dual TMD GPIO headers to easily integrate cameras or displays. Whether you are developing applications in robotics, automotive solutions, smart city infrastructure, consumer electronics, or advanced image processing, the Atum A3 Nano provides the performance and expandability you need.
With three expansion connectors, Atum A3 Nano is compatible with a wide range of expansion boards and add-ons, including many Terasic 2x20 GPIO-based expansion kits.
Included with Atum A3 Nano is a free license for Altera® Quartus® Pro Edition software — no additional license purchase is required. Developers can leverage full design and compilation capabilities of Quartus Pro without incurring licensing fees. Learn more about acquiring your free license.
We have a long history of creating a wide variety of FPGA development boards and accessories. We will use the same processes and supply chains to manufacture Atum A3 Nano.
After our production run is complete, we will send everything in bulk to Crowd Supply’s fulfillment partner, Mouser Electronics, who will handle distribution to backers worldwide. You can learn more about Crowd Supply’s fulfillment service under Ordering, Paying, and Shipping in their guide.
While global supply chain instability, including tariffs, is always a concern, we are well positioned to deliver Atum A3 Nano on time and within budget. Our longstanding relationships with Altera, Mouser, and other partners help to minimize risk to the project, and enable us to quickly adjust plans as needed. We commit to openly communicating with backers if any delays or changes arise.
Atum A3 Nano is part of Altera Innovation Lab
A3CZ135BB18AE7S
· FPGA
Largest Agilex 3 FPGA with 135K logic elements
Produced by Terasic in Hsinchu, Taiwan.
Sold and shipped by Crowd Supply.

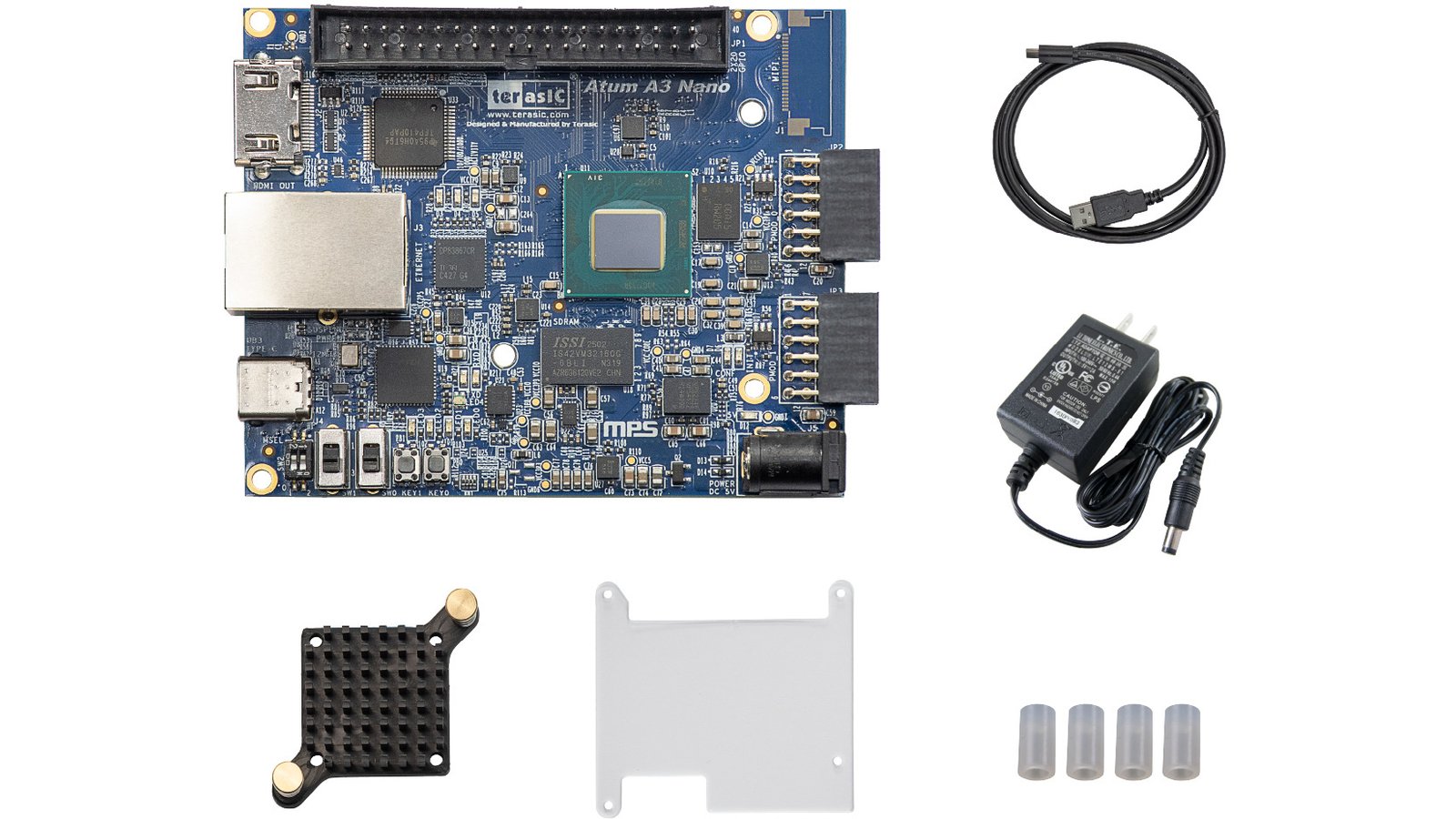

Includes one Atum A3 Nano board with preinstalled heatsink, preinstalled protective acrylic top plate, USB Type-C cable, 5 VDC / 2 A power supply, and set of four silicone foot stands.
From the Terasic Servo Motor Kit project.
Compatible with Atum A3 Nano.

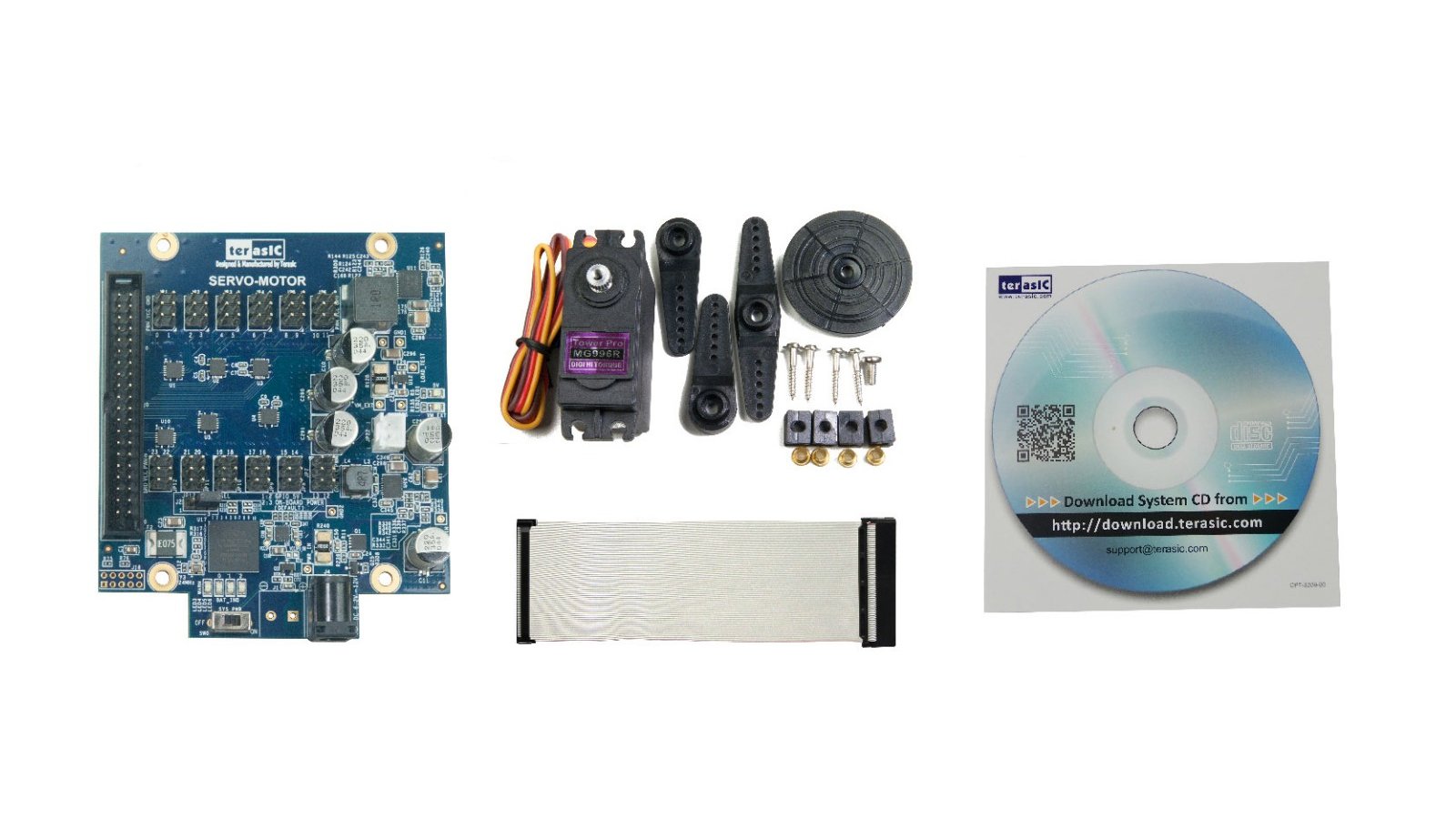

A 24-channel servo motor board (and accessories) for use with DE-series Terasic FPGA kits. Includes a servo motor driver expansion board, one MG996R servo motor, one 2×20 interface cable, and one documentation CD-ROM.
From the Terasic LT24 Touch LCD Display project.
Compatible with Atum A3 Nano.

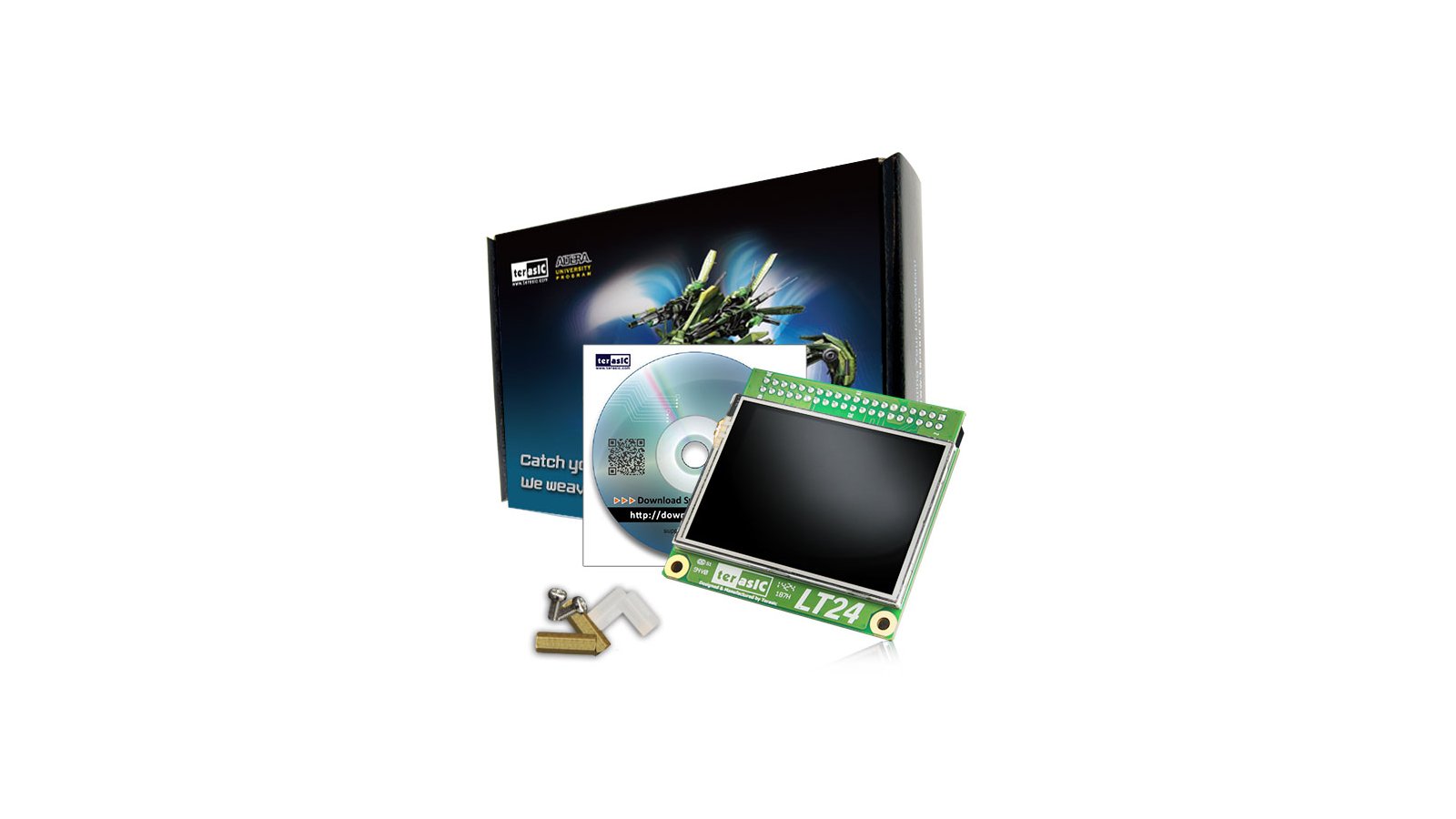

A 2.4” (diagonal) color LCD touch display with a 240 px (height) x 320 px (width) resolution for use with DE-series Terasic FPGA kits. Includes one display module, one set of board standoffs, and one documentation CD-ROM.
From the Terasic 8 Megapixel Camera Development Kit project.
Compatible with Atum A3 Nano.

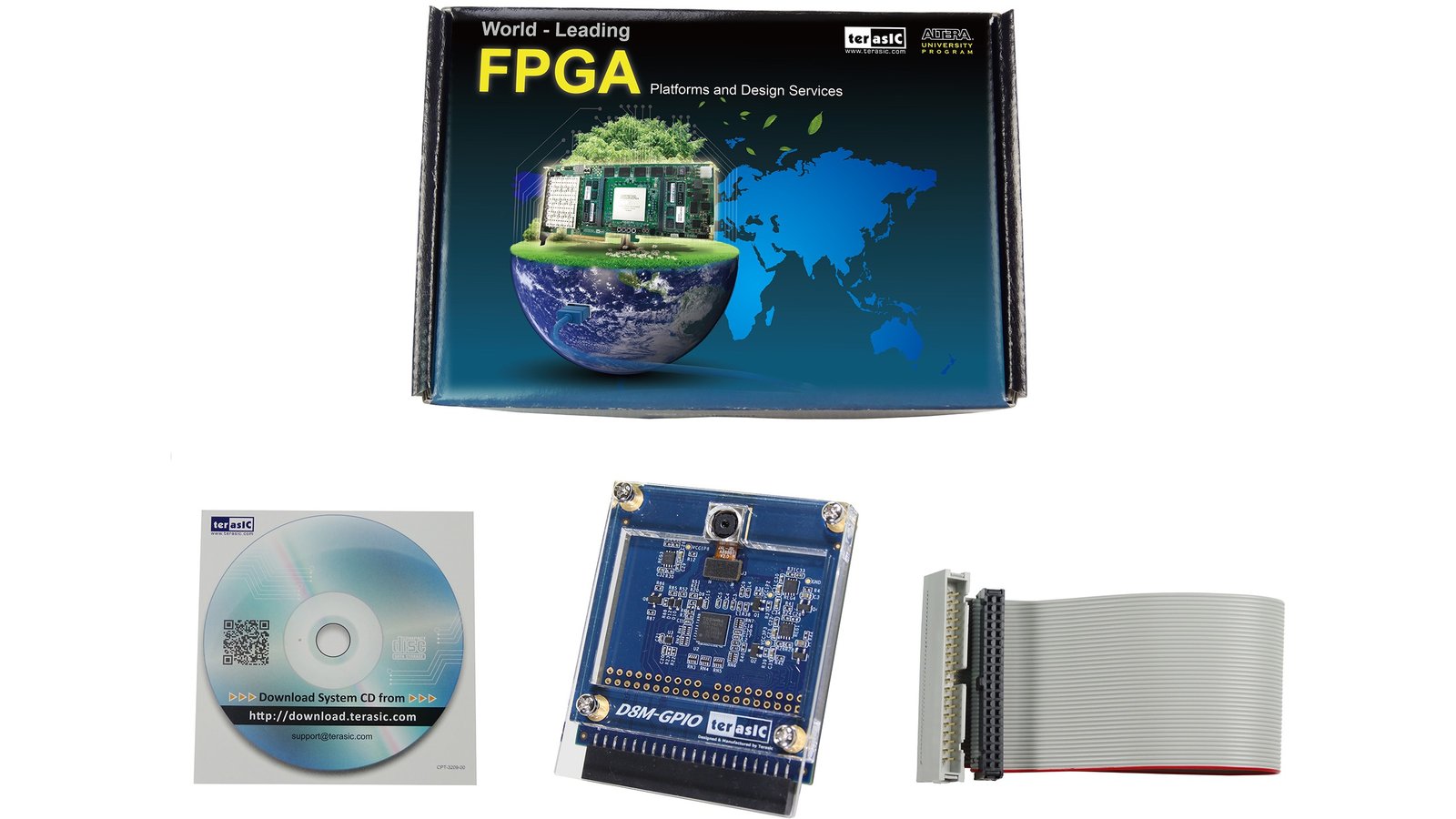

An 8 megapixel MIPI module (camera + decoder) for use with DE-series Terasic FPGA kits. Includes one MIPI module, one 2×20 interface cable, and one documentation CD-ROM.
From the Terasic RFS2 Wireless Sensing Module project.
Compatible with Atum A3 Nano.

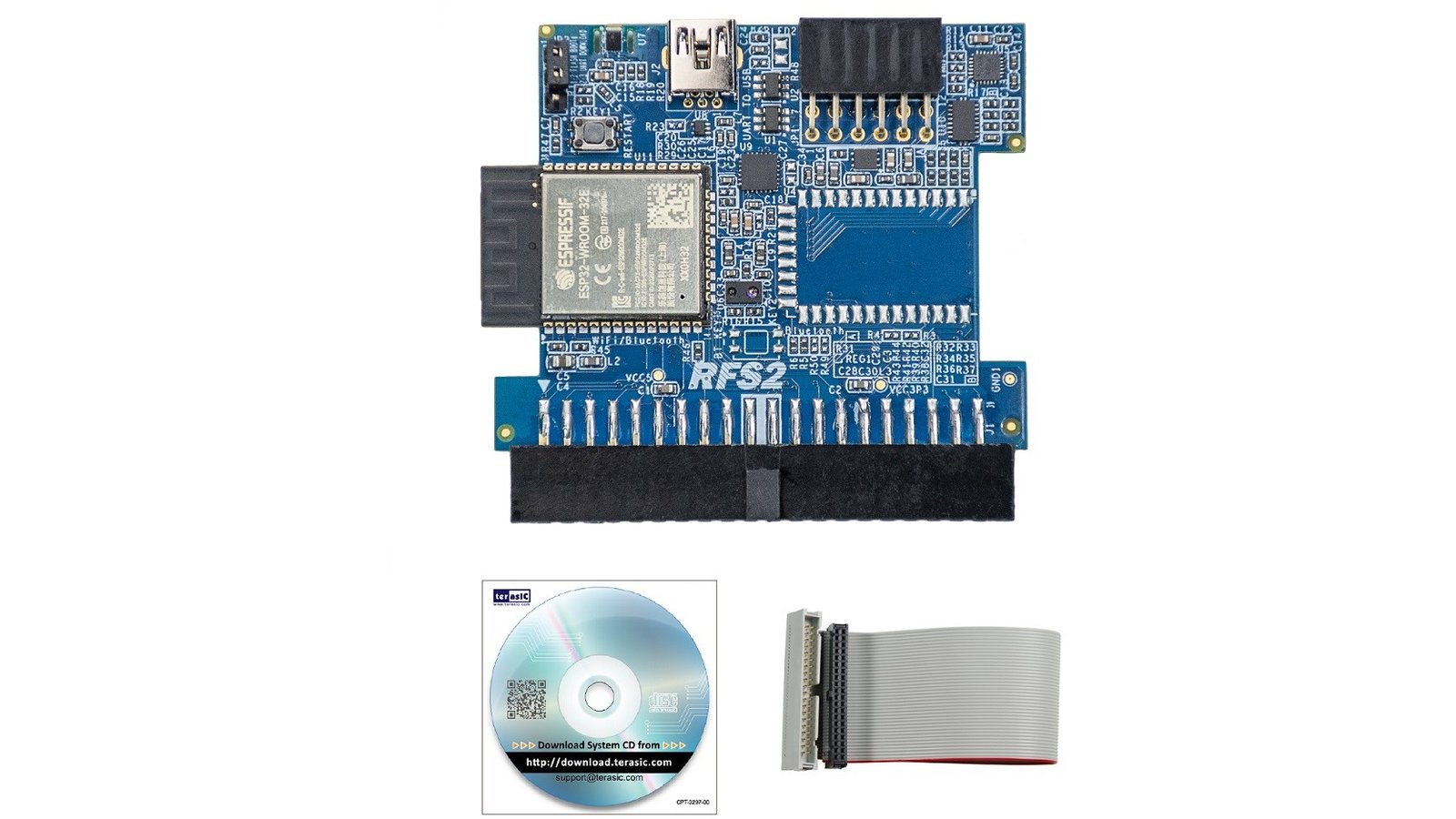

An ESP32-based wireless expansion board for use with DE-series Terasic FPGA kits. Includes one wireless expansion board, one 2×20 interface cable, and one documentation CD-ROM.
