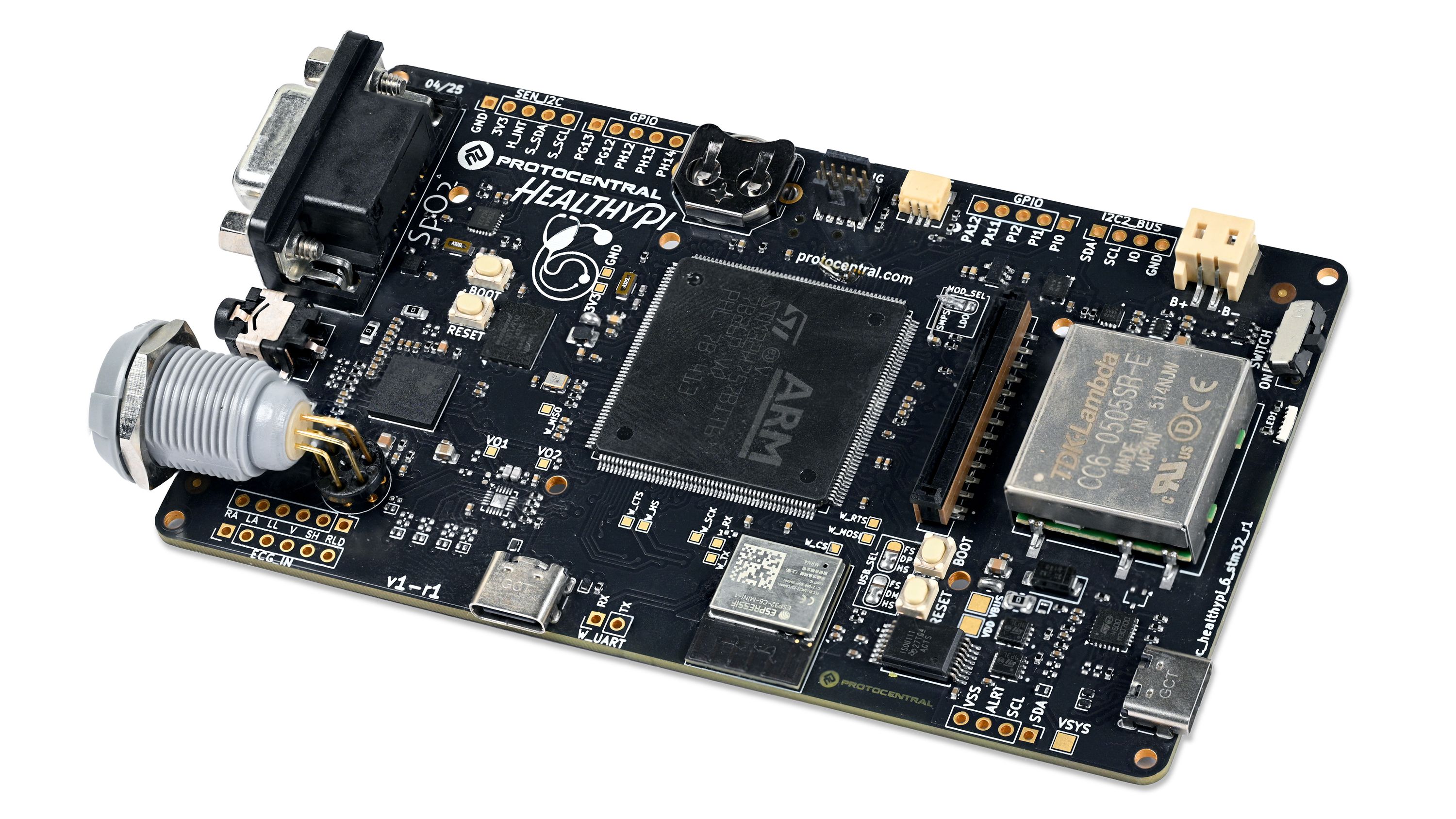

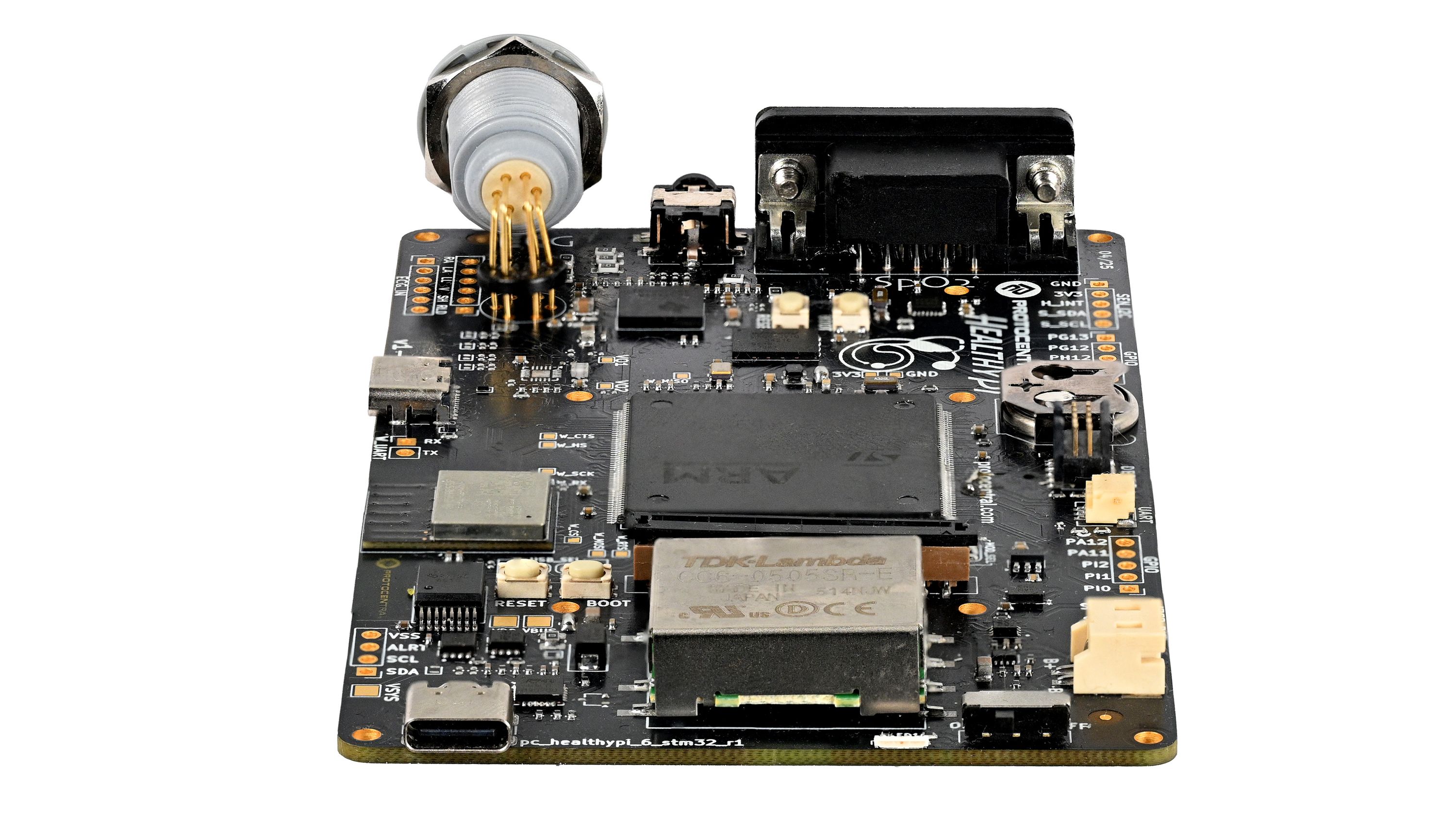

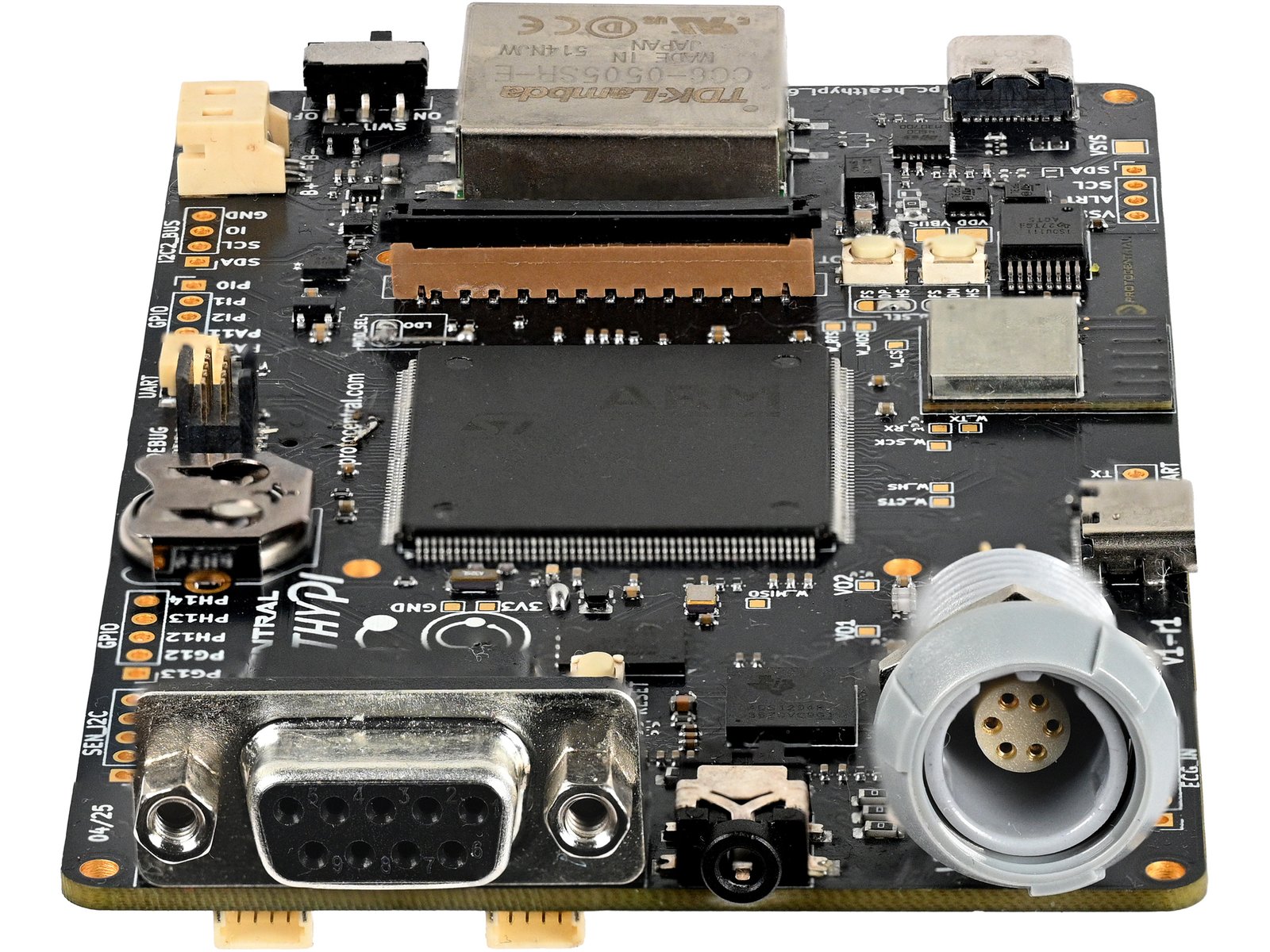

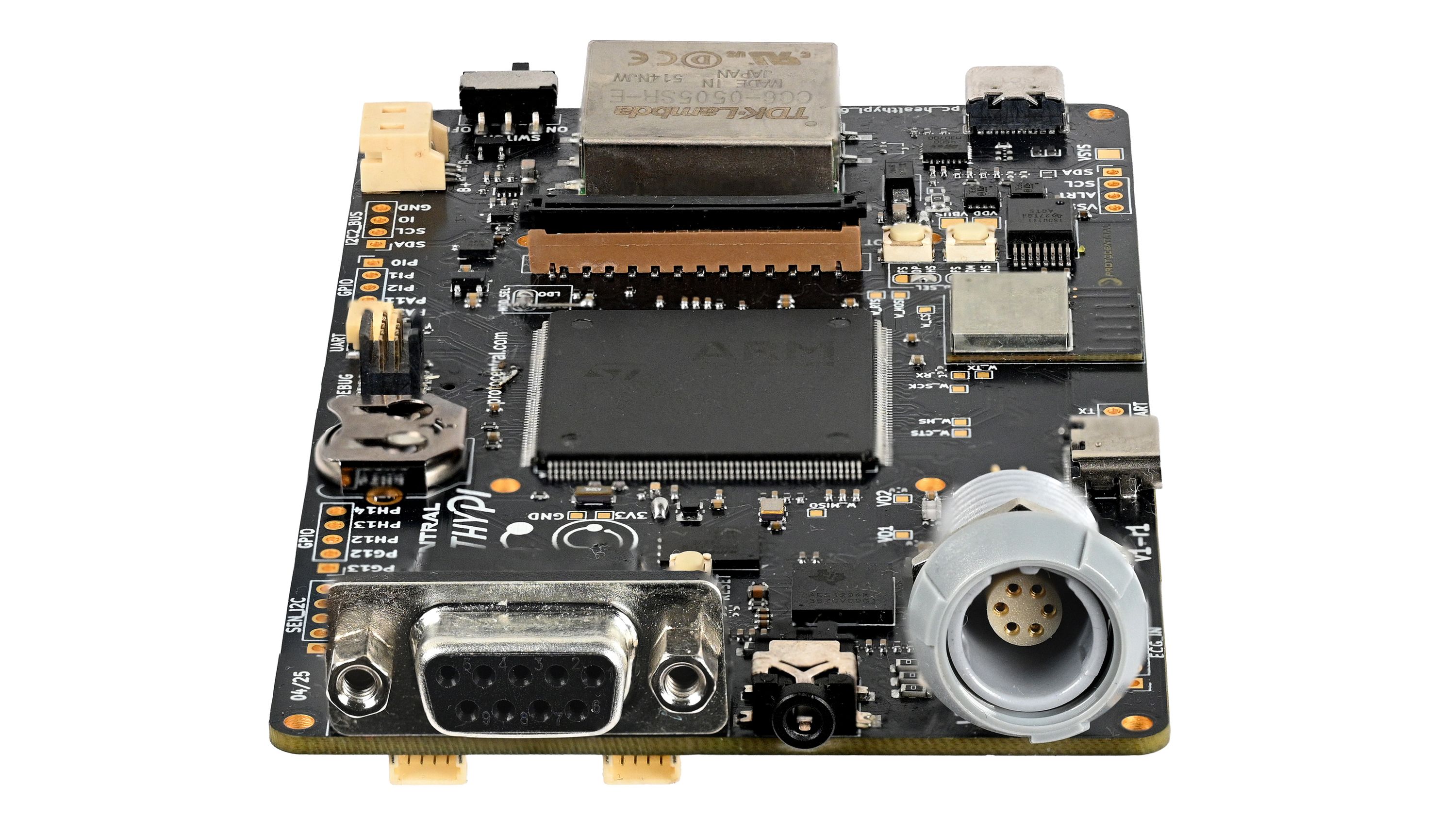

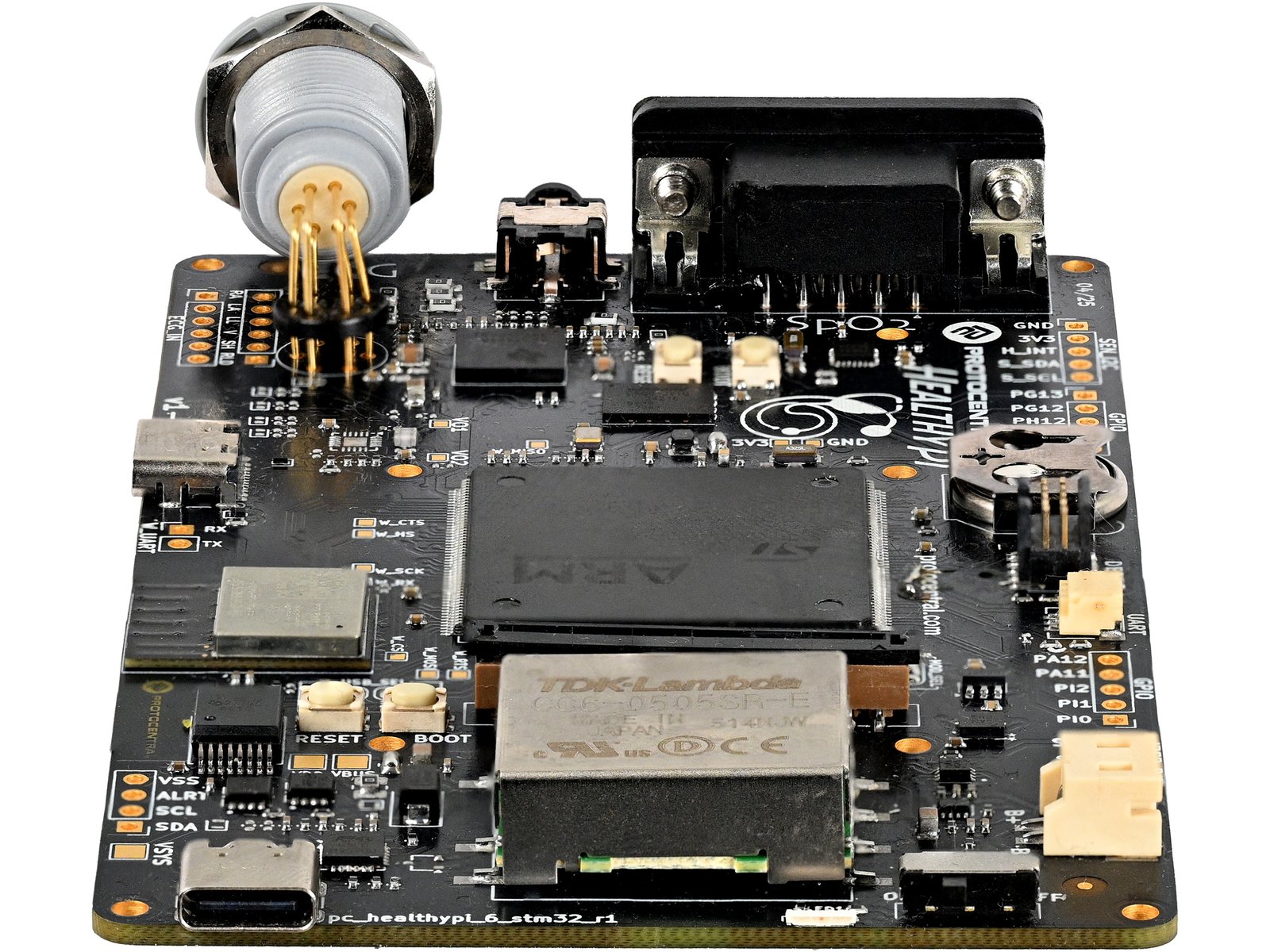

HealthyPi 6 is a powerful, open-source platform for capturing biosignals like ECG, PPG, and respiration with research-grade quality at high speeds. Unlike proprietary systems that lock you into vendor ecosystems, HealthyPi 6 gives you complete control over your data and the freedom to modify, extend, and integrate the platform according to your needs. The open-source design means no licensing fees, no vendor lock-in, and complete transparency in how your data is processed and stored.

HealthyPi 6 takes the proven foundation and principles behind HealthyPi 5 and delivers a massive performance leap. It features dramatically faster signal acquisition, significantly enhanced processing power, and expanded storage capabilities, setting a new standard for open-source biosignal monitoring platforms. Built for healthcare professionals, researchers, and biomedical engineers who value data ownership and system flexibility, HealthyPi 6 scales from single patient monitoring to complex multi-signal research studies.

The Heart of Bio-signal Capture

HealthyPi 6 stands out not just for its clinical-grade signal acquisition but also for its exceptional processing power, flexibility, and the extensibility offered by open-source Zephyr RTOS. This dual-core ARM microcontroller was specifically selected for its Cortex-M7 and Cortex-M4 processors, each running separate Zephyr applications. The deliberate choice of this architecture ensures dedicated real-time signal acquisition on one core, while the second core handles complex algorithms, data processing, and communication tasks concurrently.

It provides developers with a modern, scalable environment to build and deploy complex applications, from real-time data visualization to running on-device machine learning models. This makes HealthyPi 6 ideal for a wide range of high-impact use cases: remote patient tracking in low-resource settings, practical learning tools in academic biomedical labs, rapid health-tech prototyping for startups, AI-driven cardiac monitoring in research labs, and precise biosignal logging for medical AI model development.

Features & Specifications

Microcontroller: STM32H757 with 1x ARM Cortex-M7 @ 480 MHz and 1x ARM M4 @ 240 MHz
Connectivity: USB Type-C (data + power), UART, I2C, SPI, MIPI DSI
Storage: 32 MB SDRAM, up to 128 MB NOR flash, and high-speed microSD card interface
Power/Data Isolation: Onboard, compliant with IEC 60601-1
Firmware: Zephyr RTOS-based, fully open-source

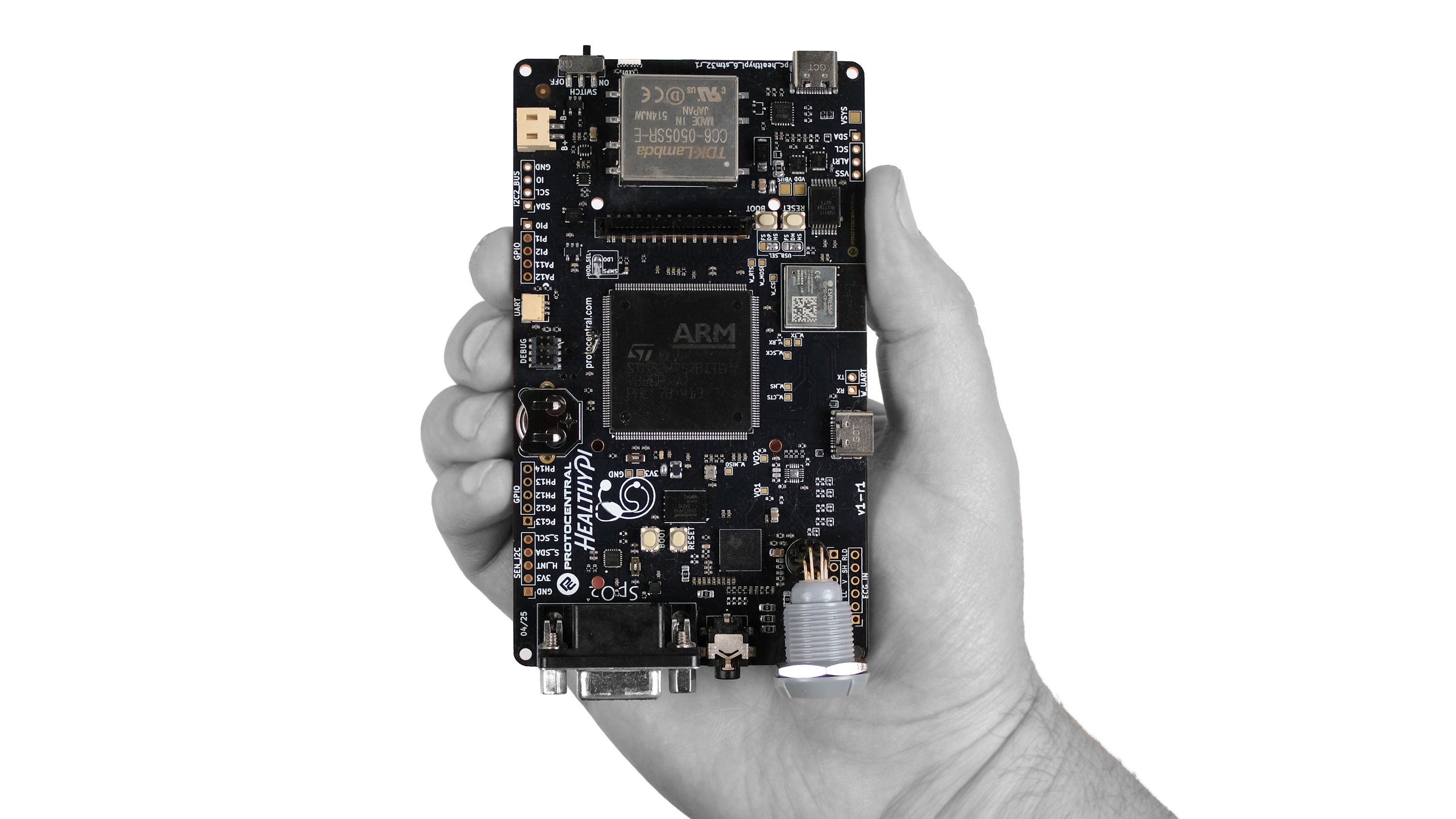

Dimensions: 120 mm x 70 mm x 20 mm (4.7 in x 2.8 in x 0.8 in) (Board only, enclosure dimensions will be confirmed before project launch)

Biosensors

ECG: 5-lead, 4 channel,  24-bit ADC (ADS1294R), with sampling rate up to 32 kSPS
PPG: Integrated analog front-end (AFE4400) with support for simple, finger-based probes for full control over raw signals
Respiration Monitoring: Thoracic impedance based on integrated AFE (ADS1294R)
Temperature Monitoring: Precision digital skin temperature sensor

Open Source

We will publish our source code, schematics, board layouts, and other design files when the campaign goes live.
