True Wireless Valve

True Wireless Valve from Uhome offers a completely wireless experience while operating on battery power and reducing installation complexity, cost, and safety concerns. Additionally, True Wireless Valve enables smart monitoring of a manually operated valve. Its seamless integration with Home Assistant and compatibility with the Zigbee protocol overcomes limitations often found in other water management devices, offering you more flexibility and control.

Simple, Convenient, Safe, and Broadly Compatible

True Wireless Convenience: True Wireless Valve demonstrates the power of wireless technology. Being battery-powered, it eliminates the need for additional wiring, offering a true wireless solution that integrates effortlessly into your home environment. This design makes installation easier and eliminates risks associated with high-voltage connections.

Smart Home Integration: Specifically designed with Home Assistant (ZHA) users in mind, True Wireless Valve also supports Zigbee2MQTT integration. It excels at providing real-time feedback and displaying the current status of the valve, whether you operate it manually or through the web interface.

Manual Operation With Monitoring: True Wireless Valve supports manual operation through a conventional handle, similar to standard valves. This allows for immediate, hands-on control when needed. Simultaneously, True Wireless Valve maintains smart functionality by consistently relaying its status back to the hub. This integration with Home Assistant ensures that users receive up-to-date feedback, blending traditional reliability with modern convenience in home automation systems.

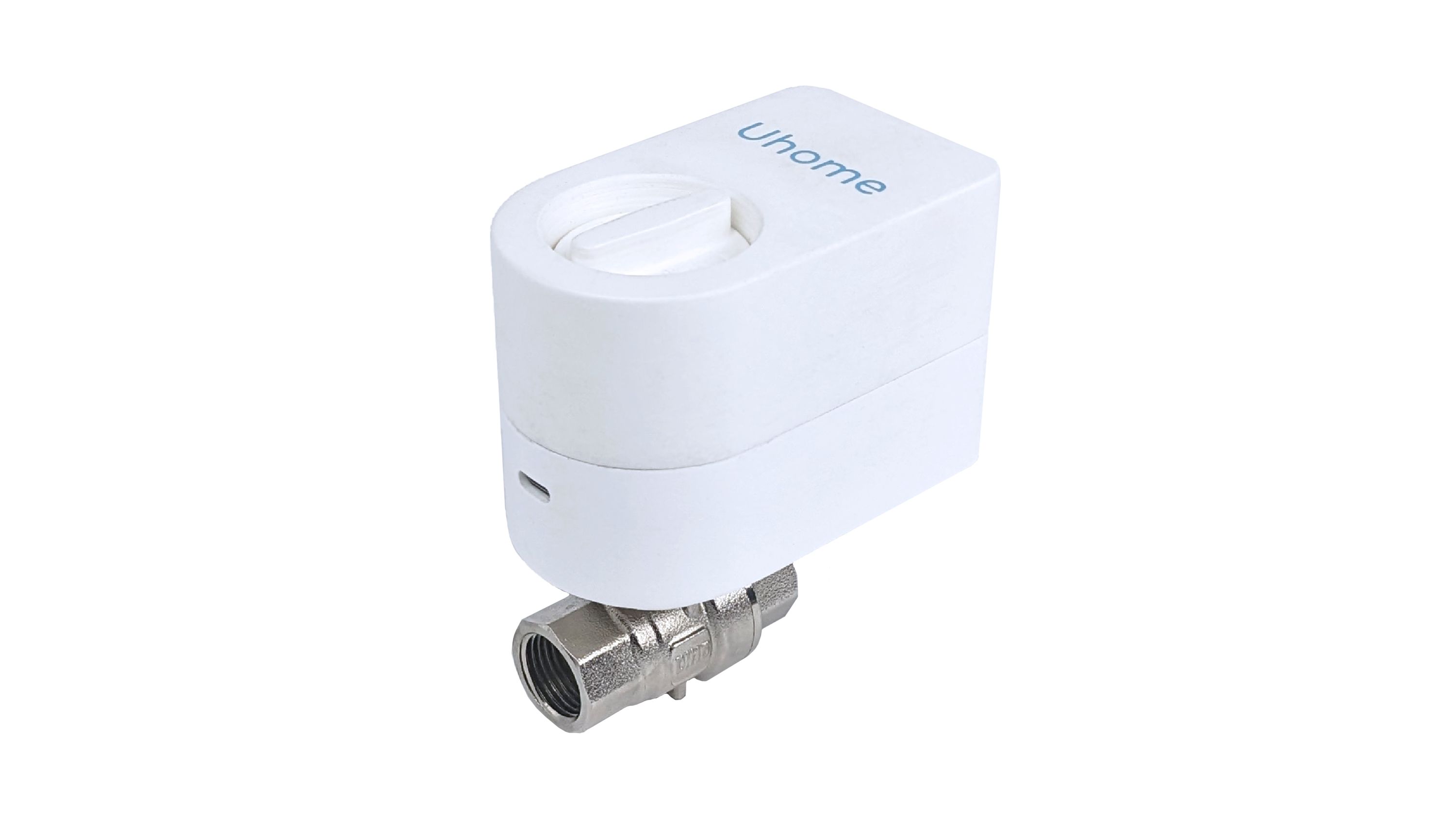

Ball-Valve & Clamp Versions Available

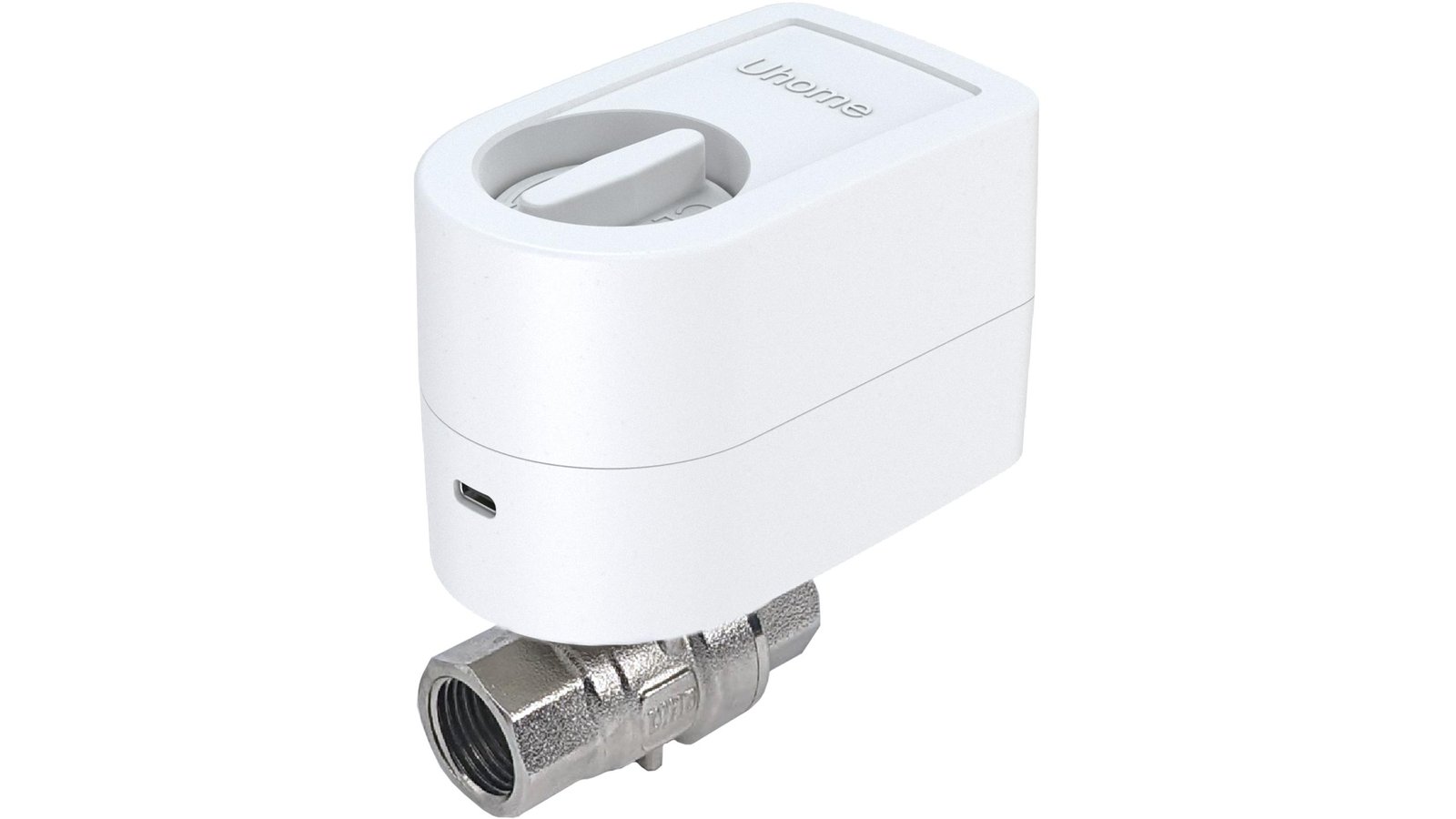

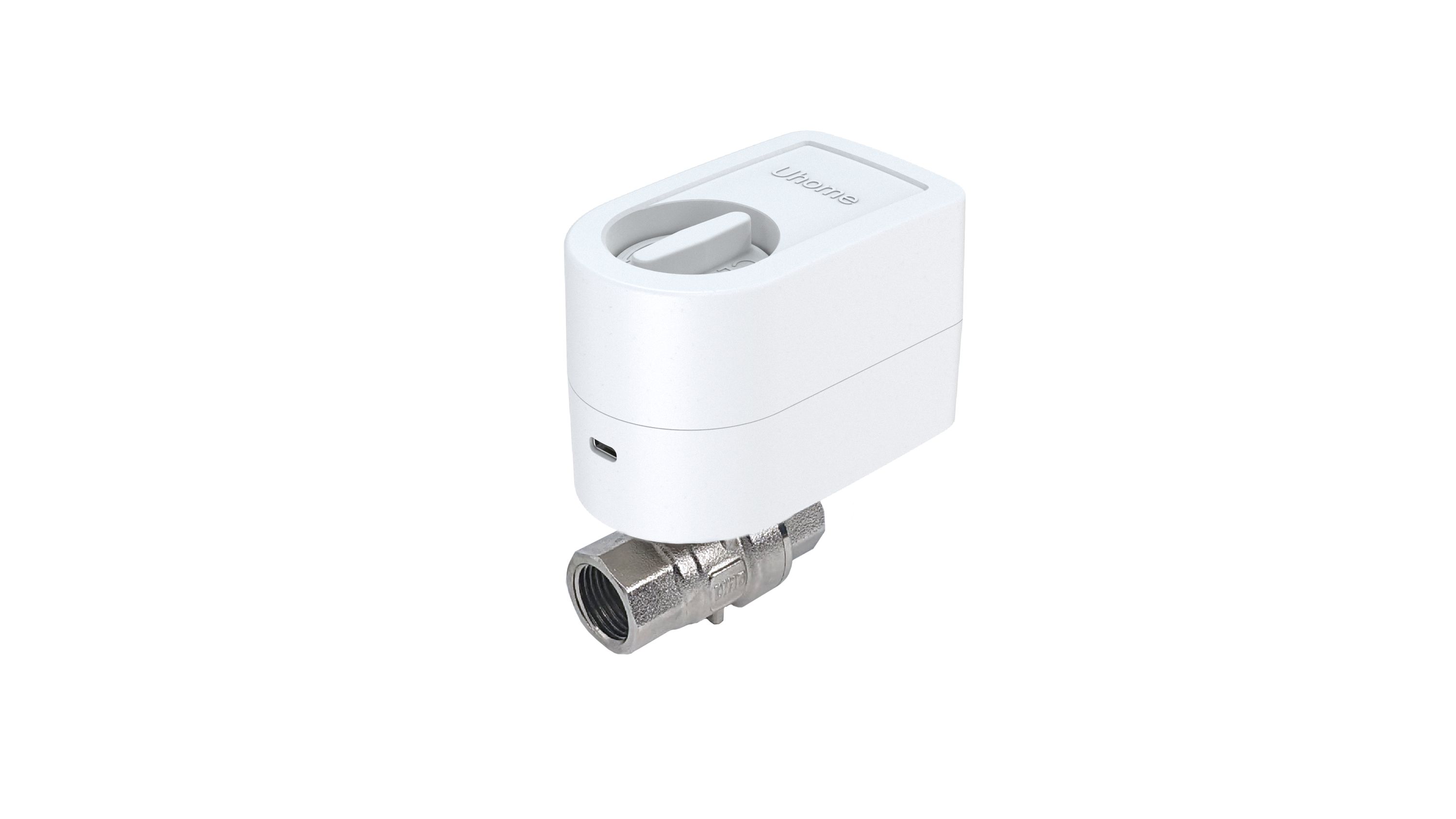

The ball-valve version caters to those who favor a more conventional integration with their plumbing systems. This model, which involves replacing your current manual valve, is available in dimensions DN15 (1/2") and DN20 (3/4") with NPT (National Pipe Taper) threading, and DN20 (3/4") with BSP (British Standard Pipe) threading. Installation may require professional assistance to ensure optimal performance and safety.

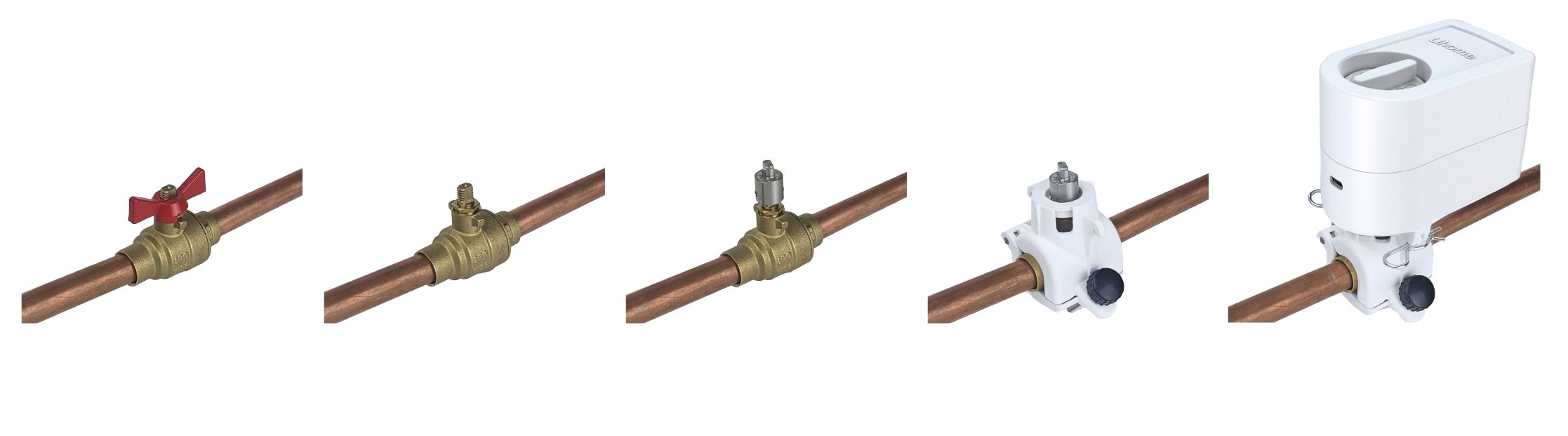

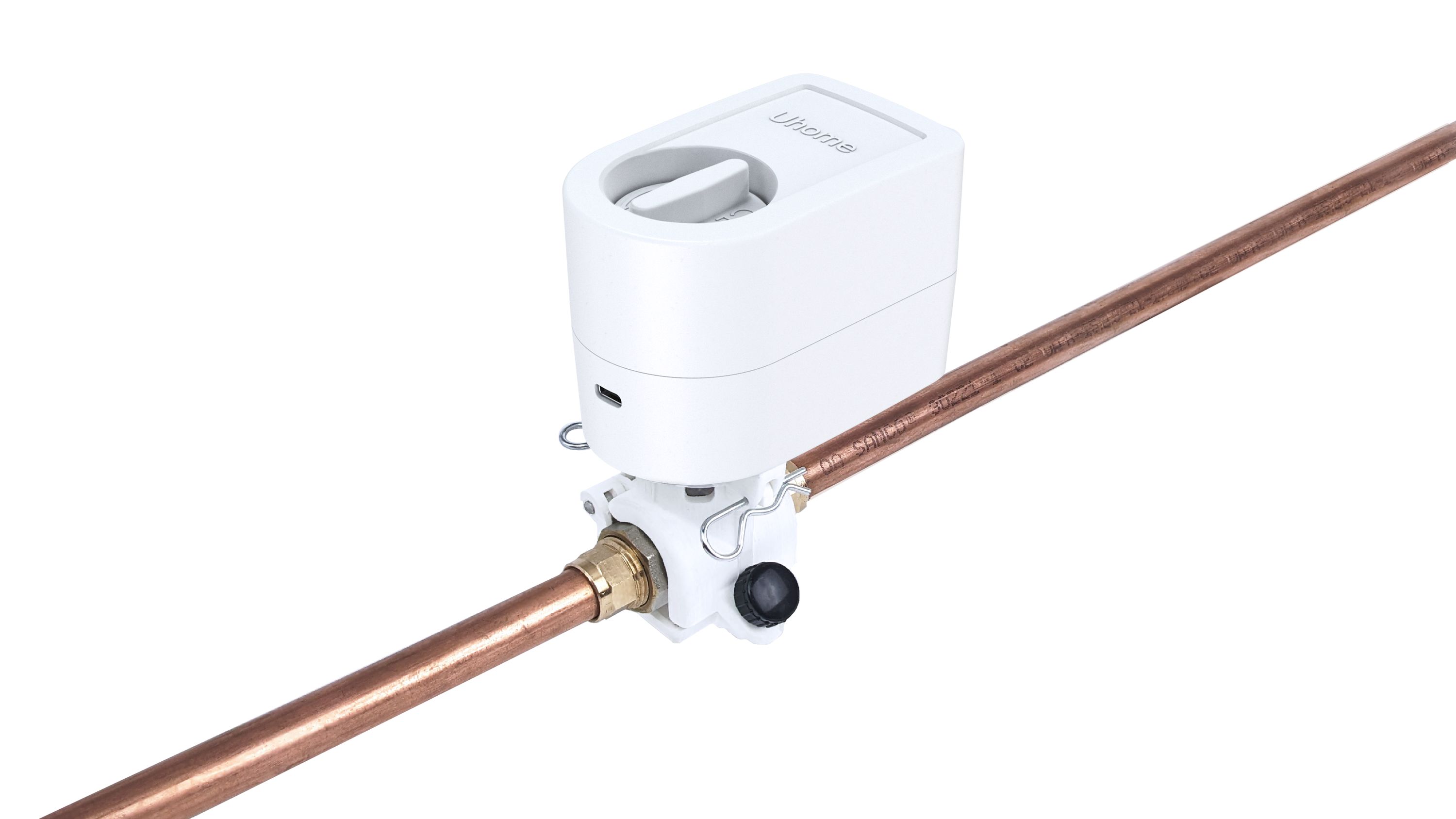

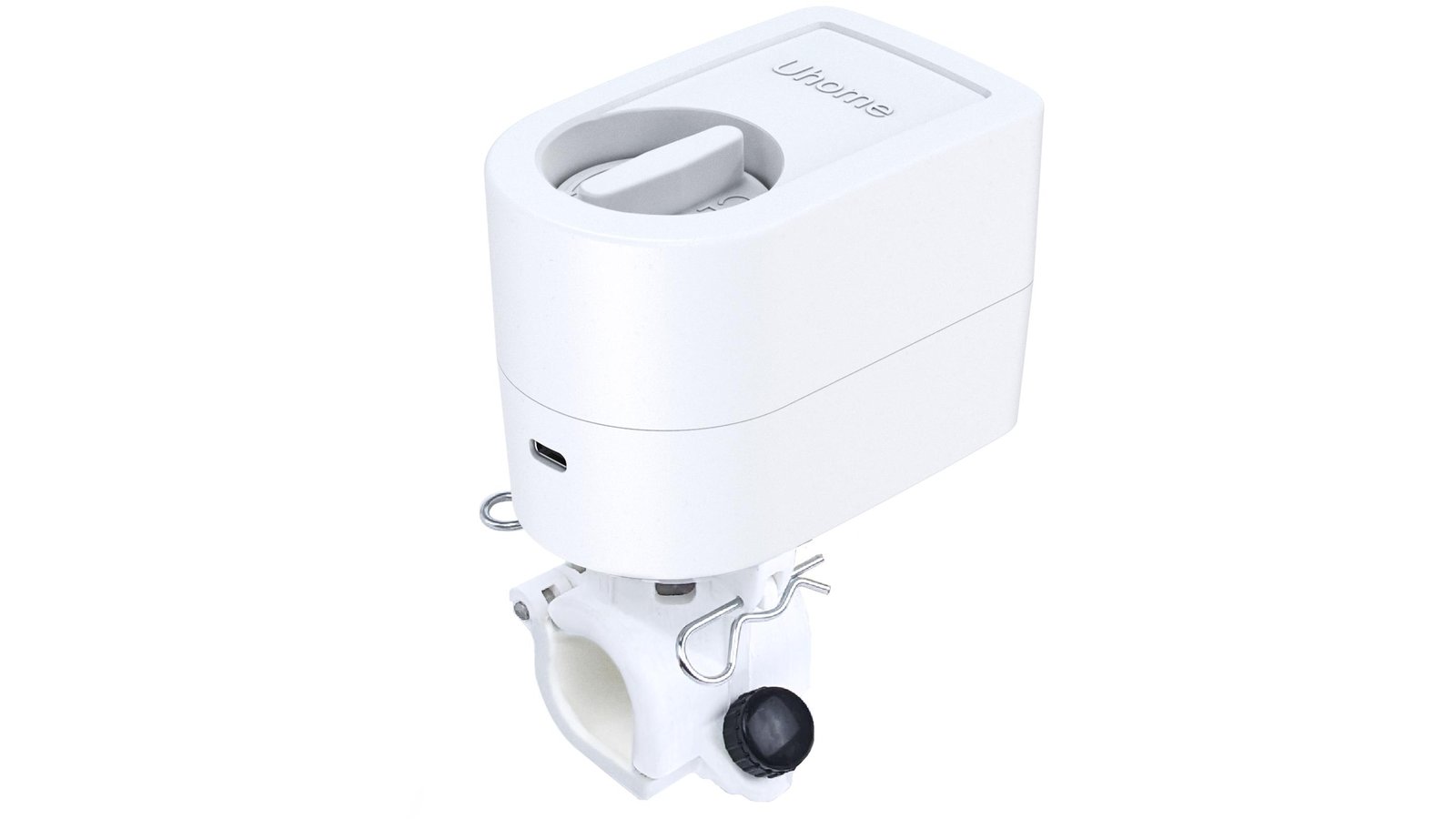

The clamp version is specifically designed for ease of use, as it can be directly attached to your existing plumbing without the need for professional plumbing services or the removal of the existing valve. This setup allows for straightforward installation and immediate integration into smart home systems. The clamp version is available in DN20 (3/4") and DN25 (1") dimensions.

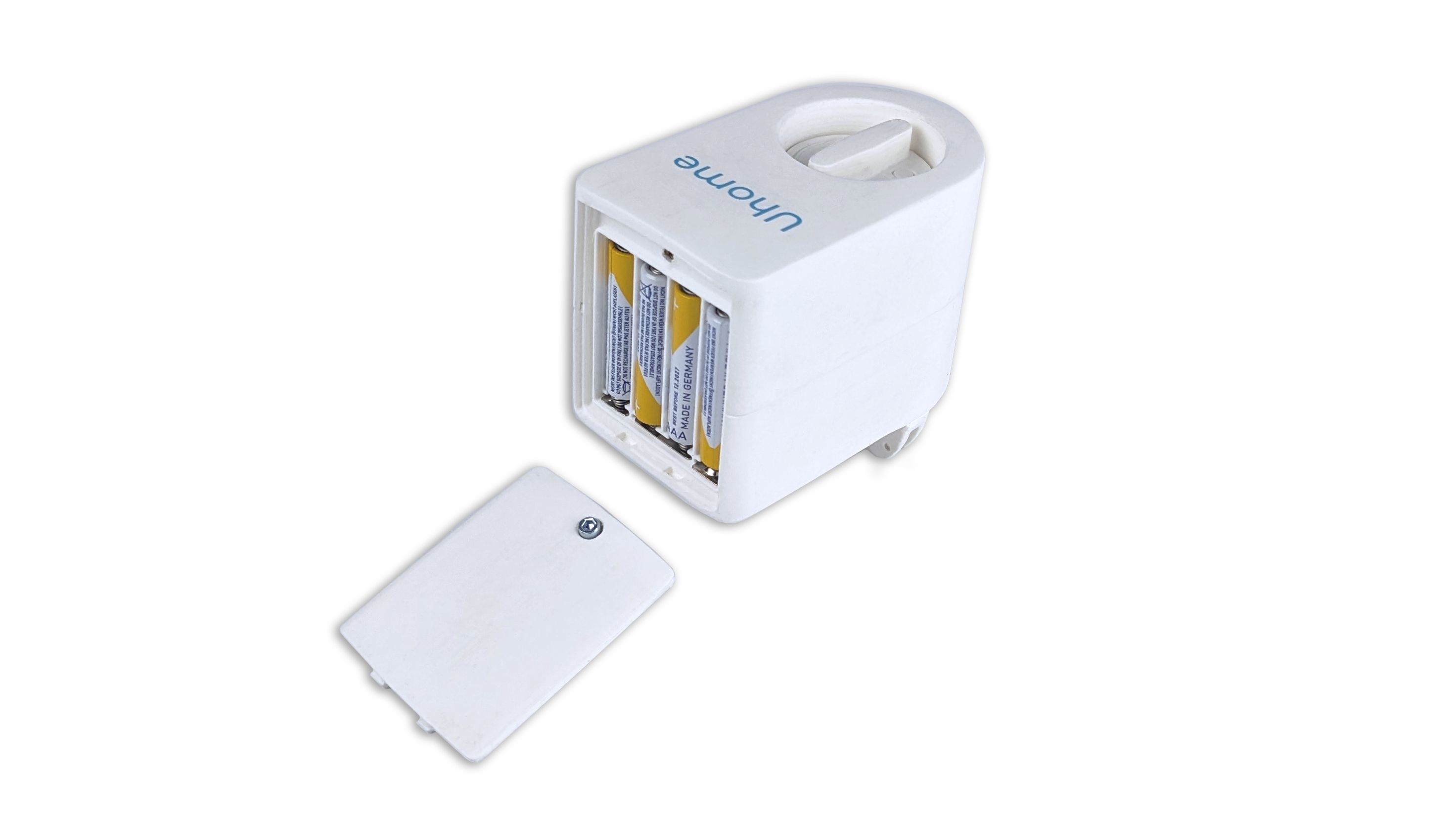

Battery Powered

True Wireless Valve runs on four AAA batteries for up to two years or can be continuously powered by a USB Type-C power supply. Either way, you will not need expensive, complicated home wiring to operate True Wireless Valve.

Smart-Home Integration

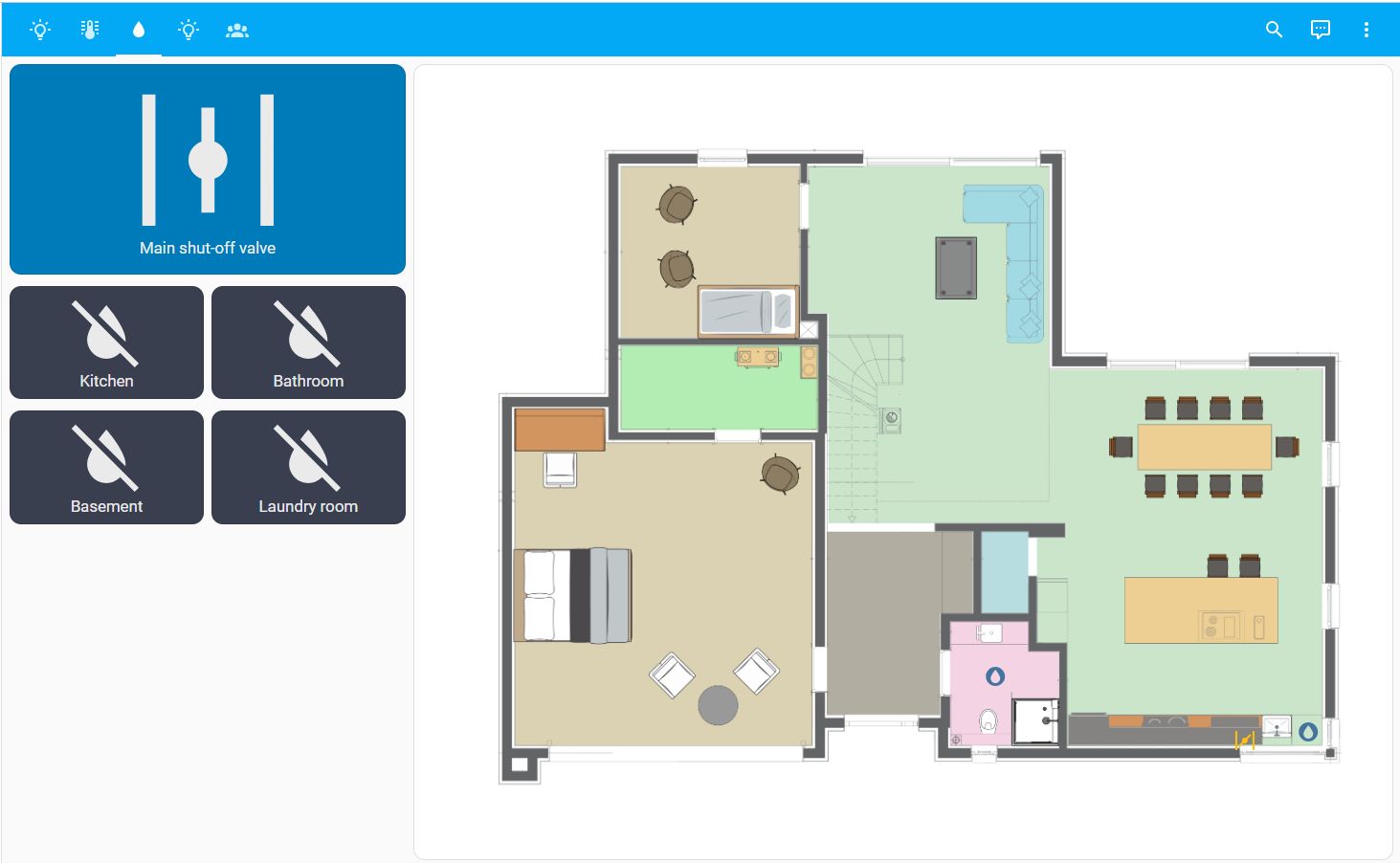

True Wireless Valve is designed primarily for residential use and is easy to integrate with Home Assistant (ZHA) and Zigbee2MQTT users. When paired with leak detectors, True Wireless Valve can also enhances home water safety by responding automatically to potential leaks¹. This functionality is a great way to prevent water damage, especially in homes where regular, in-person monitoring might not always be possible.

¹ Requires a hub and leak detectors

Features & Specifications

SoC: Nordic nRF52840 SoC with extremely low energy consumption and full protocol concurrency
Power Source: 4 x AAA Alkaline batteries (not included) or USB Type-C (5V 0.5A)
Integration: ZHA, Zigbee2MQTT
Networking Protocol: Zigbee 3.0, (update to Thread/Matter in development)
Protection class: IP65
Size Options: DN15 (1/2"), DN20 (3/4"), DN25 (1")
Dimensions: 120 x 100 x 60 mm
Color: White

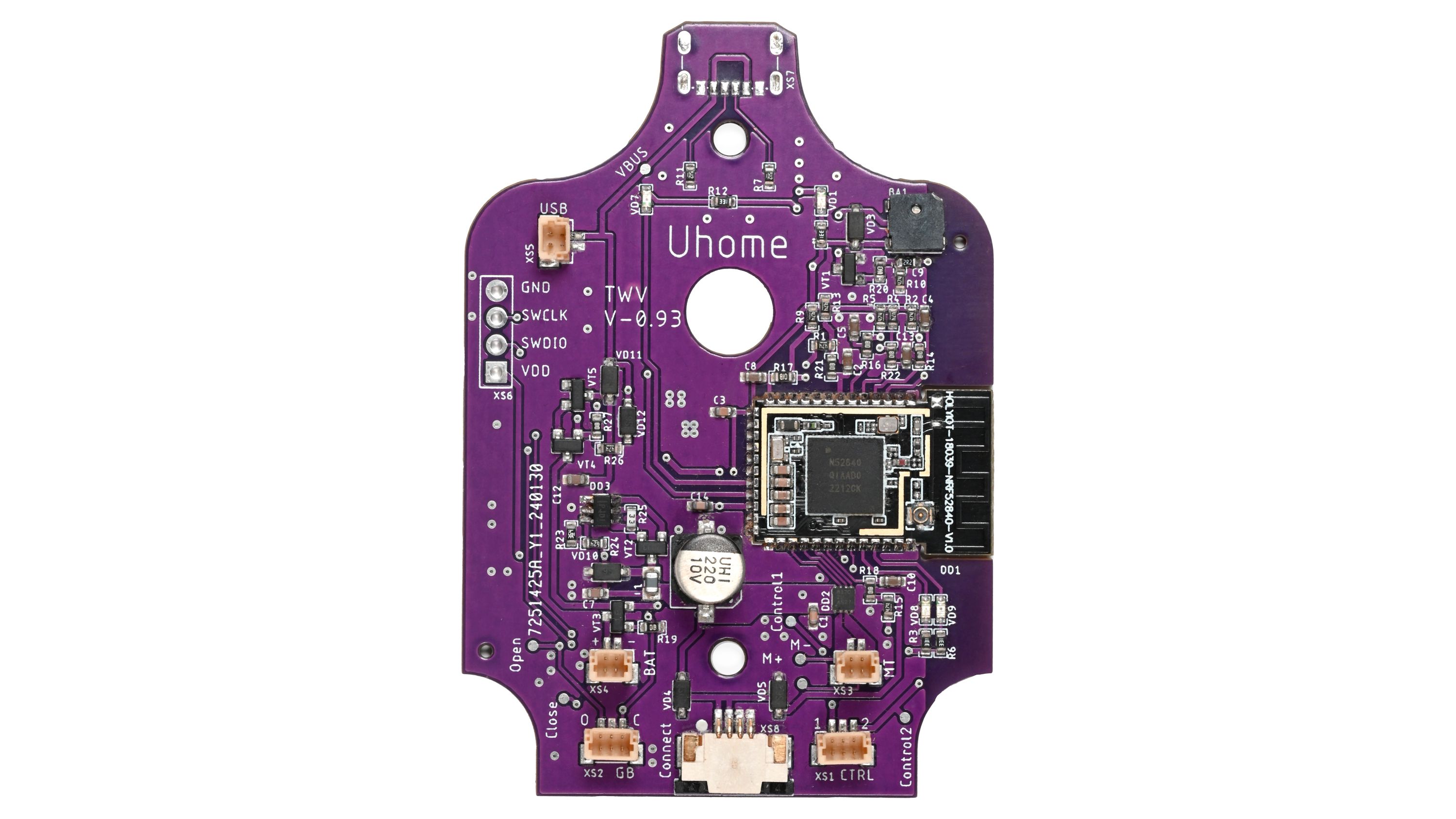

All components are placed on one side of the PCB for easy assembly with a hot plate, making it easy to replicate in DIY projects.

Comparisons

	True Wireless Valve	Sedna	Sense Guard	Flo Smart Water Valve	Guardian	Smart Valve (Clamp)	Smart Valve (Motorized)
Manufacturer	UHome	Sinopé	Grohe	Moen	Guardian	Tuya	Tuya
Wireless Technology	Zigbee ZHA & MQTT (Thread/Matter pending)	Zigbee	Wi-Fi	Wi-Fi	Wi-Fi	Zigbee	Zigbee
Installation	Easy DIY	Professional assistance required	Professional assistance required	Professional assistance required	Easy DIY	Easy DIY	Professional assistance required
Works With Butterfly & Long-Handle Valves	Yes (Clamp Version only)	N/A	N/A	N/A	No	No	N/A
Manual Mechanical Control Without Disassembly	Yes	No	No	Yes	No	No	No
Power Source	4x AAA or USB Type-C PD	5 VDC wall adapter ¹	12 VDC wall adapter ¹	12 VDC wall adapter ¹	12 VDC wall adapter ¹	5 VDC wall adapter ¹	12 VDC wall adapter ¹
Battery Life	Up to two years	Only for backup	-	-	Only for backup	-	-
IP Rating	IP65	None ²	None ²	None ²	None ²	None ²	IP67
Built-In Pipe-Break Detection	No	No	Yes	No	No	No	No
Open source	Yes	No	No	No	No	No	No
Dimensions (mm)	120 x 100 x 60	116 x 100 x 80	205 x 107 x 92	150 x 146 x 66	228 x 152 x 89	140 х 65 х 65	131 х 88 х 71

¹ Requires electrical outlet
² Indoor installation only

Support & Documentation

Our design files are available in our GitHub repo.

True Wireless Valve Ball-Valve Version w/ BSP Threading for 3/4" Pipe

A battery-powered, fully wireless valve designed for easy integration with smart home systems like Home Assistant and Zigbee2MQTT. Enables remote monitoring and control of water systems. This version is compatible with 3/4" (DN20) pipe with British Standard Pipe (BSP) threading, which is widely used in Great Britain, the European Union, Australia, and other parts of the world. The mechanism used is a ball-valve and installation involves replacing your current manual valve, which may require professional assistance to ensure optimal performance and safety.
